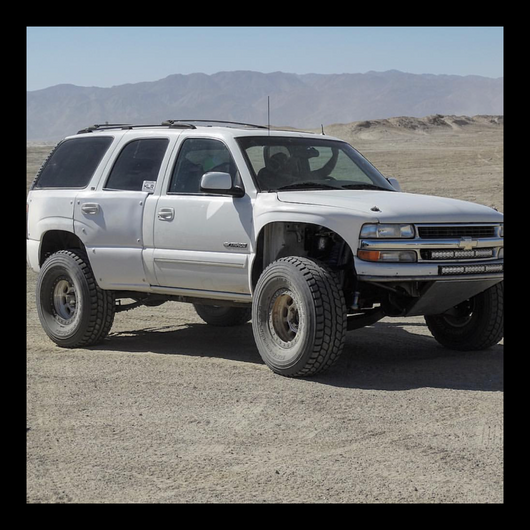

Chevy 1500 99 to 06 4x4 Long Travel Kit (Extreme)

Chevy 1500 99 to 06 4x4 Long Travel Kit (Extreme)

  • 1 Item Left. 3-4 Week Prep Time if Sold Out.
Part #: c194xexfek

Regular price $5,399.00 Sale

YEAR  99 to 06

MAKE – Chevy – GMC 1500, suburban, Tahoe- H2

LIFT – 3” to 5”

TIRES PUSHED FORWARD – 1.75”

WIDER PR SIDE – 6”

TIRE SIZE RECOMMENDED –  37”

WHEEL TRAVEL – Up to 18”

UPPER ARMS
Our powder coated upper arms are made from 1.5” .120w 4130 tubing and 3/16” 4130 plate with high grade ¾ rod ends at the frame pivots. We also changed the frame pivots and put them on tabs on top of the frame and raising the spindle 6” to eliminate some of the drastic camber and caster angles that you get when getting up to 18” of wheel travel. We also integrated an upper arm bump pad for hydraulic bump stop’s.

LOWER ARMS
Our powder coated boxed lower arm made from laser cut 1/8” 4130 steel Using 1” stainless steel uniballs at the frame pivot and 1” uniball at the spindle. This kit comes set up so that you can run a coil over, bypass shock and bump stop if wanted. (coil overs are a must.. we do not build a torsion bar set up)

SPINDLE
This kit uses the stock spindle but we supply you with a 3/16 4130 plate bolt on 6”extension that houses a stainless steel vertical stainless steel 1” uniball.
We will be offering a full custom spindle in the future.

AXLE KIT
Custom 300m axles using the stock outer and for the inner we have a 6061 aluminum adapter that bolts to the stock cv flange. We use a non plunging high grade 930 cv allowing for up to 18” of wheel travel.

PARTS INCLUDED
- Powder coated 4130 tube upper arms with ¾” rod ends
- 4130 upper arm tabs
- Powder coated boxed 4130 powder coated lower arms
- Powder coated 4130 spindle extension
- Stainless steel brake lines
- Limit straps and mounting tabs
- 4130 tie rods with high grade ¾” rod ends
- 930 axle adapter kit
- All grade 8 hardware
(shocks sold separate)

 FEATURES
- Up to 18” of wheel travel
- Raised upper spindle pivot to decrease camber and caster change.
- Increases track width
- 37” tires recommended
- Ability to run coil over and bump stop
- Major cutting and welding required
- Made in the USA

RECOMMENDED PARTS
Fiberglass fenders - Trailer Products 6” fenders

RECOMMENDED PRODUCTS FOR SALE

King 2.5 x 12” Remote Res Coil Over $637.80


King 2.5 x 12" Remote Res Free Bleed Shock - $619.99

King 2.5 x 12" Remote Res 2-Tube Bypass Shock - $725.80
King 2.5 x 12” Remote Res 3-Tube Bypass - $783.75

King 2.5 x 3" Hydraulic Bump Stop with Weld Can - $343.99

Chevy Rear Suspension Parts (springs, hardware, shackles)



Idle Arm - $695.00

Steering Upgrade - $645.00
Bump Stop Tabs - $59.99
Plate Shock Mount - $299.00
